Data Acquisition Devices: What's New in DAQ?

LINUX FOR DAQ
The 758-875 Wago-I/O-IPC-C10E features Linux 2.6 and a 1-GHz Celeron M processor. It has 256 MB of RAM and 512 MB of Flash, and data can be stored on the IPC’s CF Card. Its ports include an RS-232, two USB, compact Flash and two independent Ethernet. Combined with CANopen and ProfibusDP fieldbuses in the master version, it can serve as a main PLC in industrial environments.
Wago
800/346-7245
www.wago.com

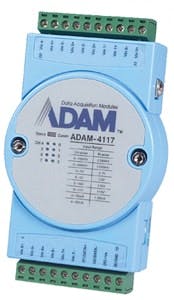

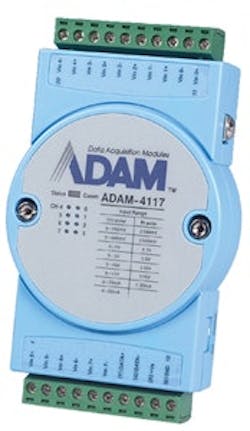

TOUGH DAQ
Adam-4117 is a DAQ module designed for harsh environments. A built-in microprocessor, encased in industrial-grade ABS plastic, provides intelligent signal conditioning, analog I/O, digital I/O, LED data display and an address mode with a user-friendly design. It has eight differential and independently configurable channels, high noise immunity, and a broad power input range (+10~48 VDC).
Advantech
800/800-6889
www.advantech.com

LIMS FOR LABS
Thermo Scientific Clinical laboratory information management system (LIMS)is designed to improve the management of laboratory workflow and enable communication between physicians and the lab. It brings together the core functionality of a LIMS with the compliant functionality of a traditional laboratory information system and facilitates compliance with patient privacy regulations.
Thermo Fisher Scientific
866-463-6522
www.thermoscientific.com/informatics

NEW-GENERATION PROCESS CONTROL
ControlMaster has a lineup of four instruments: a single controller-based model of each DIN size and a multi-purpose dual-input indicator. A full-color, thin-film-transistor liquid crystal display shows process information, and provides unsurpassed ease of use. Flexible I/O capabilities simplify model selection. All units have Ethernet, Profibus and Modbus protocols. Enclosures provide IP66 and NEMA 4X environmental protection.
ABB
800-829-6001
www.abb.com/instrumentation

POWERFUL DAQ SYSTEM
The 8B isoLynx is a compact, low-cost DAQ solution for rugged industrial applications. It can be configured with up to 12 channels of isolated analog input, four channels of isolated analog output and eight channels of isolated digital I/O using Dataforth’s SensorLex 8B analog and SCMD digital modules. The pluggable module selections include 70 analog and 14 digital I/O models.
Dataforth
800/444-7644
www.dataforth.com

THE CRIMSON SYNC
SQL Sync, a new feature of Crimson 3.0 programming software enables users to synchronize logged data from G3 HMIs directly with SQL Server. SQL Sync is available on the 8-in., 10-in. and 15-in. G3 Series HMIs. The drag-and-drop interface is an efficient, user-friendly platform that allows programmers to configure protocol conversion, data and event logging, and remote system access.
Red Lion
717/767-6511
www.redlion.net

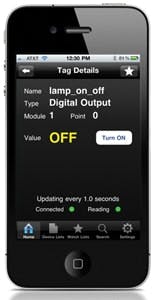

SNAP APP
The iPac IOS app offers access to Opto22’s Snap PAC system via mobile devices, including iPhone, iPod Touch and iPad. Authorized users can see real-time control system information, inspect Snap I/O points and PAC control strategy variables, and execute control functions. Save retrieve or view specific I/O points and tagnames; and start or stop flowcharts running in control strategies.
Opto 22
800/321-6786
www.opto22.com

VERSATILE TEMPERATURE CHART RECORDER
CT89 series temperature chart recorders accurately measure and record temperatures in air, gas, liquids, powders, solids and semi-solids using the stainless-steel, remote-reading probe with cable. It features a large LED digital display, three temperature ranges, four chart speeds, battery back-up, polycarbonate case, cover and handle, and the ability to be freestanding or wall-mounted.
Omega
888/826-6342
www.omega.com

NO MORE PROGRAMMING
DasyLab Version 12 data acquisition software allows users to configure custom acquisition, analysis and control applications in minimal time and without programming. Version 12 offers new, revised, easy-to-use examples, updated help sections, updated installation and configuration, support for multi-core processors, support for Windows 7/Vista/XP and more.
Measurement Computing
800/234-4232
www.mccdaq.com

LOW-COST, 100-kHz DAQ MODULES
DT9812A, DT9813A and DT9814A DAQ modules offer affordable multifunction capability with the added benefit of USB 2.0 compliance and sampling rates up to 100 kSamples per second. They feature USB power for portable measurements, 12-bit resolution for analog I/O subsystems, 18, 16 or 24SE analog input channels, two analog output channels, event counting, and digital I/O lines.
Data Translation
800/525-8528
www.datatranslation.com

ECONOMICAL, COMPACT MODBUS RTU AND DISTRIBUTED I/O
The microNCS Modbus RTU master and distributed I/O provides RS-485 master capabilities, distributed data acquisition, and, with expansion I/O, control capabilities. It operates as a real-time signal gateway, taking data from four or eight isolated analog inputs and four discrete (contact closure) inputs, and then transmitting the data back to one or more host DCS, PLC or PC-based control system.
Moore Industries International
818/894-7111
www.miinet.com

NO MORE PAPER
X-series paperless recorders enable electronic acquisition and storage of data. Their graphical display makes them ideal for use by plant managers, engineers, maintenance and quality control personnel and operators. Three models are available. Each displays various combinations of horizontal and vertical charts, digital values and bar graphs.
Honeywell Process Solutions
800/343-0228
www.honeywellprocess.com
