All the Newest Devices to Help You See What's Really Going On In Your Processes
FULL-SPECTRUM ANALYZER Model IPS-4 full-spectrum analyzer measures up to eight components using the most favorable absorptions in both UV and IR spectrums. It is equipped with analog (4-20 mA) and digital communications capabilities, including RS232, RS485 with Modbus RTU protocol and a built-in fast Ethernet port, and features a stainless-steel, 22-key keypad, and a four-line vacuum fluorescent display. Ametek Process Instruments 412/828-9040 www.ametekpi.com
WATER SAMPLING SOLUTIONS The stationery Liquistation CSF48 and the portable Liquiport CSP44 monitor influent and effluent at water/wastewater treatment plants and other industrial processes. CSF48 accepts hot plug-and-play inputs from up to two Memosens digital sensors to measure nitrates, conductivity, oxygen, pH, ORP or turbidity. Each unit can store up to 100 programs and run up to 24 programs at a time. Endress+Hauser 317/535-7138 www.us.endress.com
PURGE CONTROLLER The ePurge X is a purge controller with fully automated purge and pressurization functions. Its digital mass flow sensor self-regulates purge duration. The purge pressure range is minimum 4 bar (60 psi) and maximum 8 bar (115 psi). The operating temperature range is -20 °C to 55 °C. ePurge X is certified in hazardous areas to NEC Class 1, Division 1, Groups C, D and IEC: Zone 1, Group IIB. Applied Analytics 978/287-4222 www.a-a-inc.com

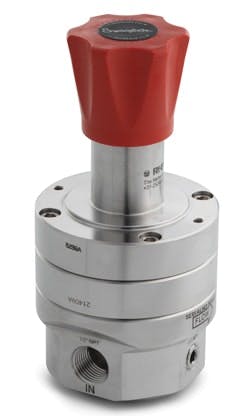

SPRING-LOADED REGULATOR RHPS series LRS(H)4 spring-loaded pressure regulator provides high accuracy for analyzer applications. It is constructed of 316L stainless steel and available in many configurations. It is designed to handle 400 bar (5,801 psig) inlet pressure (2.2mm seat), and features a low-torque, no-wear stem and removable hardened cap. Temperature performance range is from -20 °C to 80 °C (-4 °F to 176 °F). Swagelok www.swagelok.com
LIQUID ANALYSIS Model 56 four-wire, multi-parameter liquid analytical instrument features a high-res color LCD screen, Smart-enabled pH, a complete on-screen user manual and Quick Start prompts. It also has wireless network compatibility using the wireless Thum adaptor on HART-enabled units, a standard USB port and Wave 0.5 AMS Intelligent Device Manager screens. Rosemount Analytical 800/854-8257 http://tinyurl.com/4mmlx69

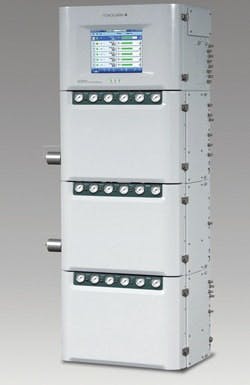

GAS CHROMATOGRAPH UPGRADE GC8000 is a next-generation gas chromatograph with a 12-in. color touchscreen suitable for Class I, Zone 1 installation. It makes multi-oven parallel chromatography practical. Available with either single- or dual-channel 100BaseT or fiber-optic Ethernet connections. Data transfer can be Modbus TCP/IP. Two common alarm contacts and four relays for external I/O interception are standard. Yokogawa 281/340-3800 www.us.yokogawa.com
