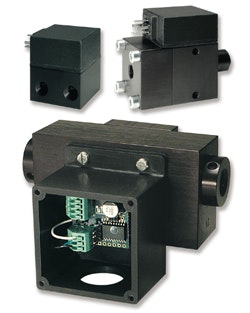

The rugged differential pressure transmitters are designed for high line pressure applications in filtration, flow, and level measurement. The transmitters are available in piston and diaphragm sensor models rated at up to 5,000 psig line pressures. The transmitters transform differential pressure (DP) measurement into voltage (0-5 V, 3 or 4 wire) or current (4-20 mA, 2 wire loop-powered). The transmitters' bodies are made from solid blocks of stainless steel, brass, aluminum or PVC and rugged, proprietary sensors, these transmitters withstand severe environments and high line pressures while maintaining 2% full-scale accuracy (for standard-size DP models) and 5% (for miniature DP models). They also meet a variety of requirements, from NEMA-4X to Class 1, Div. 1 or Div. 2, IP65, CSA, and many more.
