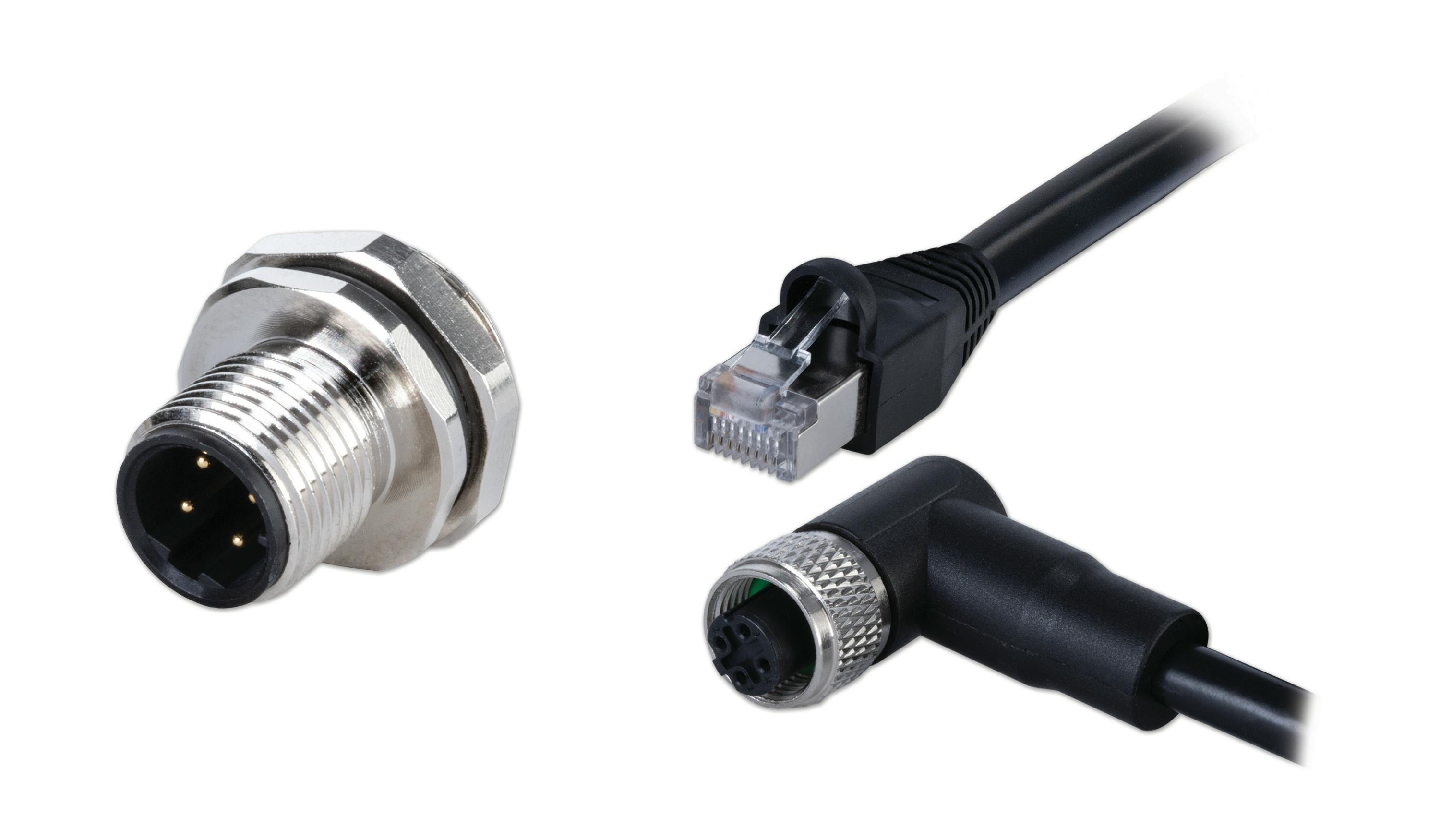

CDM12 circular connectors and circular cable assemblies offer a range of male or female jacks, or plug versions with four-pin contact position options. These M12 D-coded connectors and cables also carry IP67 ratings for harsh environments.
M12 D-coded circular connector models are housed in panel-mount packages with PC pin or wire lead terminations and M12 x 1.0, M16 x 1.5, or PG9 thread sizes.
M12 D-coded circular cable assembly models are housed in a PVC or PUR jacket material with copper alloy screw terminals, straight or right-angle orientations, and cable lengths from 0.5 to 5 meters. The cables offer either a blunt cut cable end or RJ45 plug connector option.
These M12 models operate at -25 °C to 80 °C, voltage ratings of 60 or 250 VAC, and current ratings of 1.5 or 4 A. Additional coding options are available as custom configurations.
